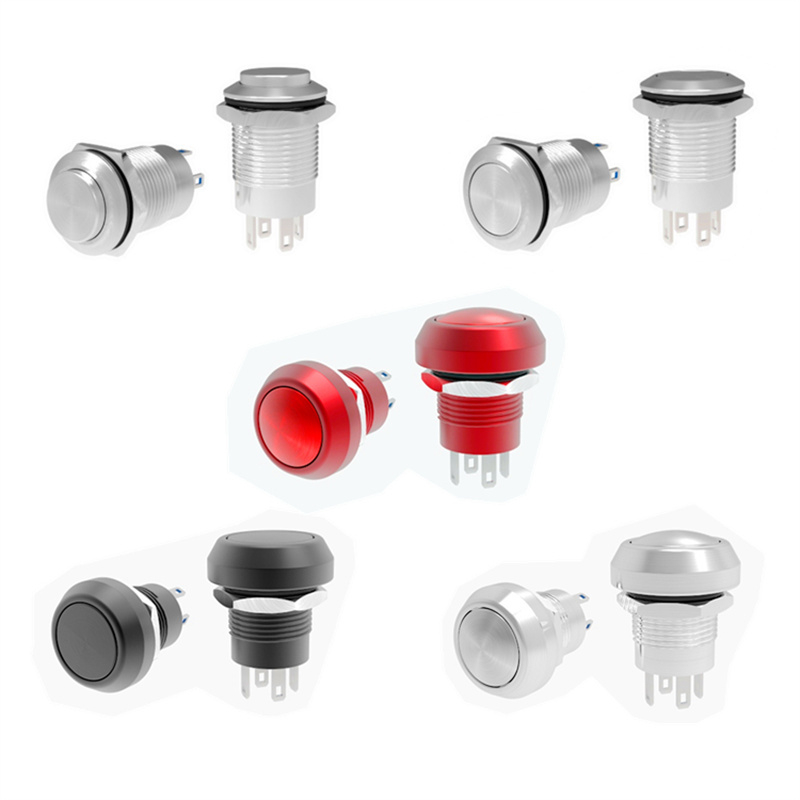

12mm self-reset switch
2PIN normally closed/normally open
4PIN 1NO 1NC function
the switch color can be customized according to the needs of the panel.
Safety certification: SGS/REACH/TUV: IP67
SPECIFICATIONS Panel Thickness: Ø12.20mm Contact Rating: 0.2A/250VAC 0.5A/12VDC Mechanical Life: 100,000 cycles Electrical Life: 50,000 make-and-break cycles at full load Torque: 5~14Nm Travel: About 2.0mm Operation Pressure: 400±150gf Dielectric Strength: 1,500 Vrms @sea level. Ingress Protection: IP67
MATERIALS BUSHING : Stainless Steel / Nickel plated brass / Aluminum alloy BASE : PBT, PC ACTUATOR : PC ; Stainless Steel / Nickel plated brass / Aluminum alloy INNER ASSEMBLY : POM / PA66. SPRING : Spring steel. SEALING : Sillicone. O-Ring : Sillicone TERMINAL : Brass,with silver or gold plated. HEX NUT : Nickel plated brass |
