RA09 Metal Shaft Rotary Potentiometer

RA09 Metal Shaft Rotary Potentiometer

ONE、MECHANICAL CHARACTERISTIC
1. Rotational Torque: 20~200gf.cm
2. Total Rotational Angle: 300°±10°
3. Shaft Stop Strength: ≥3.5Kgf.cm
4. Shaft Wobble (mm p-p): 0.7*L/20 Max

TWO、ELECTRICAL CHARACTERISTIC
1. Total Resistance Range: 1KΩ<R<1MΩ, ±20%; 1KΩ≥R or R≥1MΩ, ±30%
2. Resistance Taper: A/B/C
3. Power Rating: 0.05W
4. Insulation Resistance: 50 MΩ 1 Min at DC 250V
5. Dielectric Voltage: 1 Minute at AC1250V

THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 10,000 cycles Min

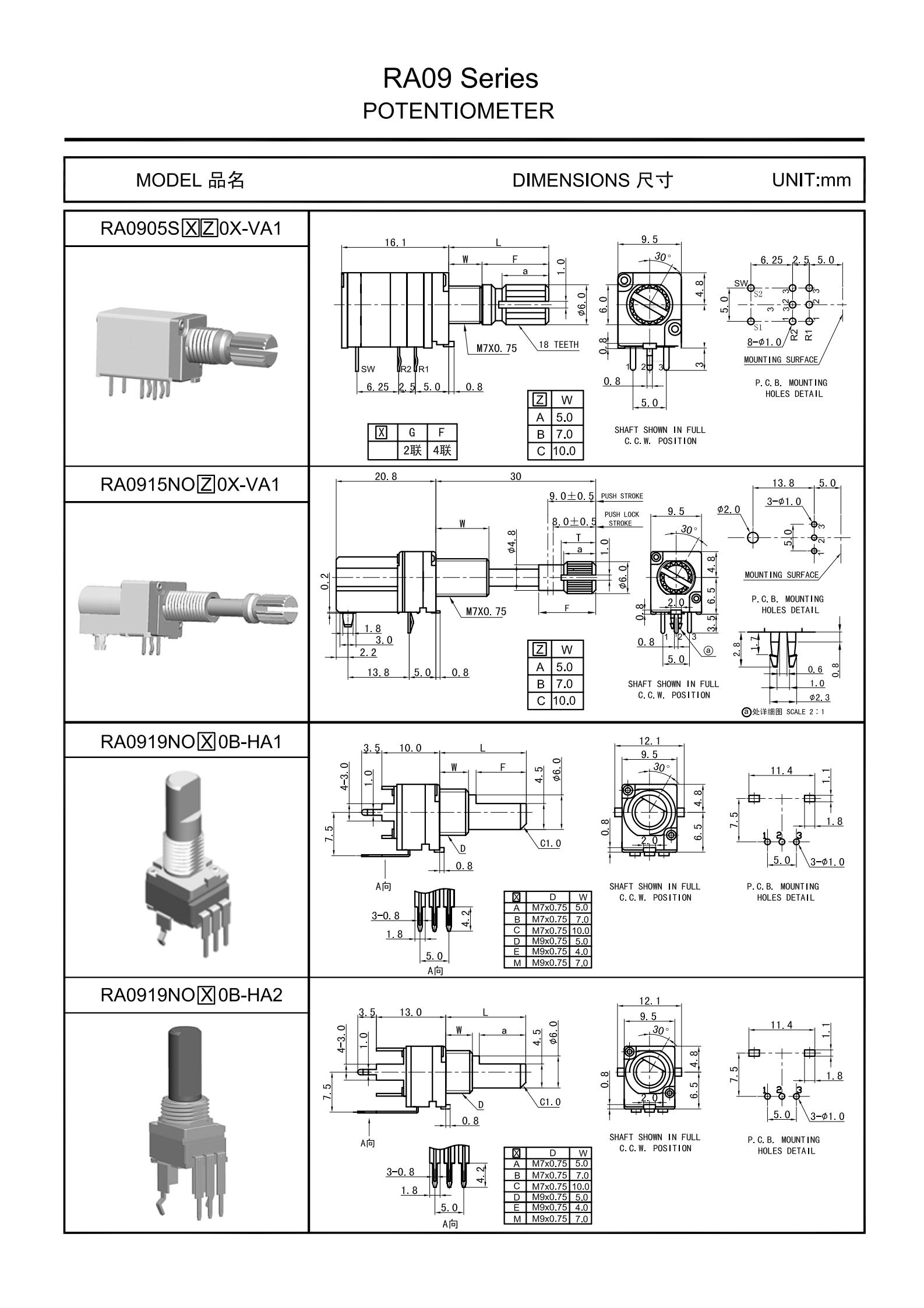

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".

Inquiry Now

Potentiometer model:RA09 series

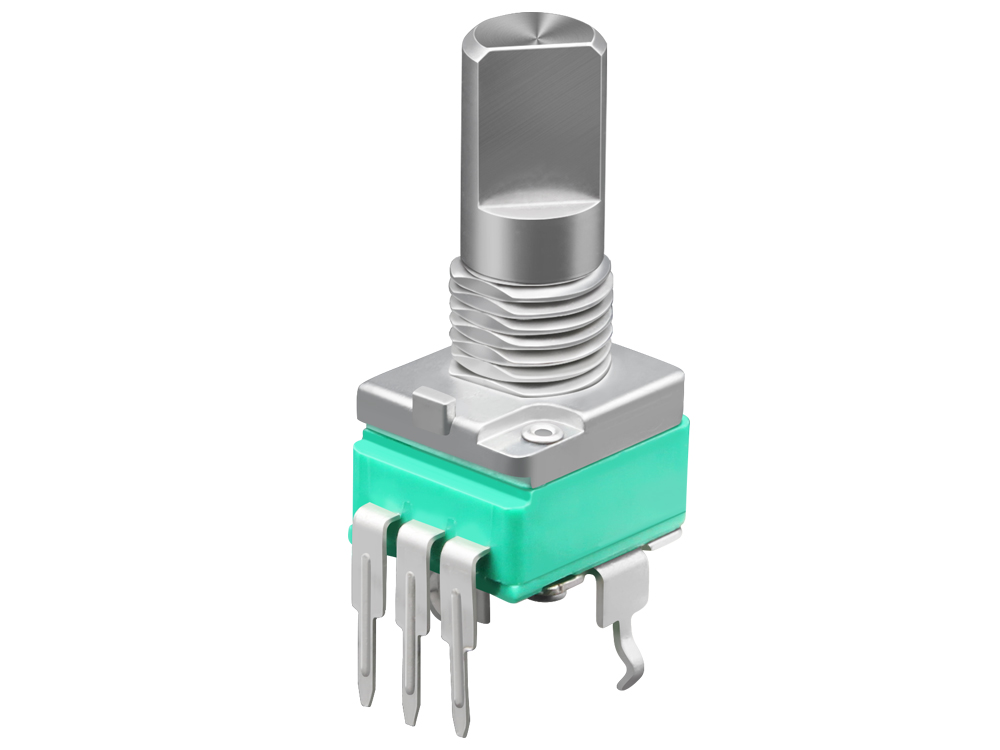

Name:Metal Shaft Rotary Potentiometer
Main Specifications:

Dimensions: 9.5mm
Total resistance error: ±20%
Rotational angle: 300±10°
Rated power: 0.05W
Operating temperature: -10°C~60°C

Rotational life: 10,000 cycles Min

Product Features:

Plastic packaging structure, can effectively cope with wave soldering;

Good product sealing;

Can be with positioning;

With push switch or rotary switch;

Shaft length and shape can be adjusted;

Various mounting options to choose from.

Applications:

Multi- coal audio amplifiers, walkie- talkies and other electronic

equipment, can also be used in home appliances, medical equipment.

 The main functions are to adjust the volume, pressure regulation,

temperature regulation, dimming and other functions.
