Createn Electronics Electro Launches Six Next-Gen Micro Switches: Redefining Miniaturization with Ultra-Thin & Ultra-Narrow Designs

    Createn Electronics proudly unveils six revolutionary micro switches, expanding its cutting-edge MINNI Series with ultra-thin and ultra-narrow solutions for next-generation compact electronics. Engineered to deliver unmatched performance in space-constrained applications, these switches set new benchmarks in precision, durability, and environmental compliance.

New Product Highlights

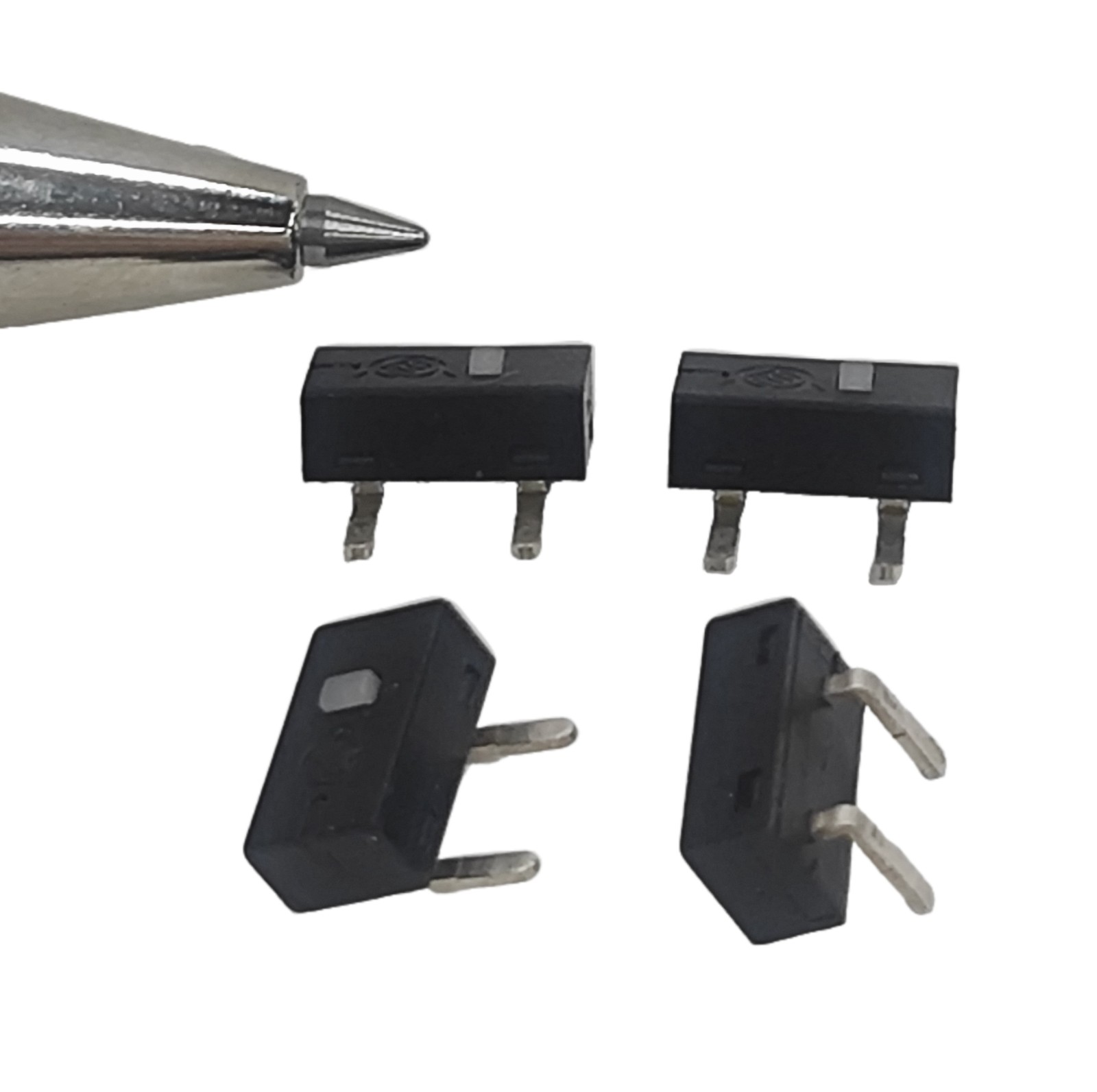

1. MINNI-UT Series (Ultra-Thin)

Models: UT-01 (SMD), UT-02 (PCB Pin)
Core Specifications:

• Dimensions: 8.6mm (L) × 4.8mm (W) × 3.0mm (H) – Thinnest in Class

• High-Speed Switching: 0.5ms actuation time with <1μs bounce

• Mounting Flexibility: Surface Mount (SMD) / Through-Hole (Straight/Bent/Long Pins)

• Lifecycle: 5,000,000 cycles @ 100mA

• Certifications: RoHS 3.0, REACH SVHC

Key Applications:

• Wearable device power toggles

• Medical endoscope control modules

• Ultra-slim IoT sensor triggers

2. MINNI-UN Series (Ultra-Narrow)

Models: UN-01~UN-04 (Varied Actuators)
Core Specifications:

• Space-Saving Depth: 2.7mm shaft depth

• Power Density: 1A@125VAC in 4.8mm width

• Flux-Resistant Design: Monolithic terminal blocks solder creep

• Actuator Options: 6 plastic button profiles (Flat/Curved/Extended)

• Lifecycle: 3,000,000 cycles @ 1A

Key Applications:

• High-density PCB industrial controllers

• Automotive dashboard tactile interfaces

• Smart home appliance mode selectors

Breakthrough Technologies

✅ Nano-Precision Spring System
Laser-trimmed BeCu springs ensure ±0.05gf force consistency across 500K cycles.

✅ Triple-Seal Architecture
IP40-rated dust protection (IEC 60529) with silicone-rubber shaft seals.

✅ Smart Manufacturing Traceability
Each switch embeds a QR code for real-time production batch validation.

Comparative Advantages

Certifications & Compliance

🔵 RoHS 3.0 | 🔵 UL 61058-1 | 🔵 IEC 60335-1
🔵 Material Transparency: Full IMDS reports available

Customization Services

• Actuator Tailoring: Submit CAD files for custom button geometries

• Electrical Tuning: Adjust contact materials (Ag/Cu/Au)

• Packaging: Tape-and-reel (SMD) or anti-static trays
