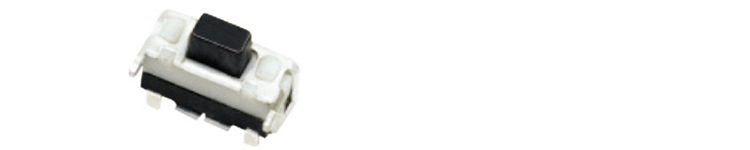

Side button tact switches

Tact Switch - Mini Type Tactile Switches or tact switches are an on/off electronic switch that is only on when there is some pressure put on it or when the button is pressed.As soon as the tactile switch button is released and the press

Inquiry Now

Description

Tact Switches

SPECIFICATIONS

Feature： Horizontal Push

Contact Rating: 50mA @ 12VDC.
Mechanical Life: 500,000 cycles

Electrical Life: 50,000 cycles

Contact Resistance: 100 mΩ max.
Insulation Resistance: 100MΩ min.100VDC

Dielectric Strength: 250 Vrms @sea level.
Operating Temperature: -30°C to +85°C

Features

※ Improve mounting density of components on PC board.

※ Reflow solderable

※ Sharp “click” feel with a positive tacile feedback

※ Packaged with a 12mm wide embossed taping.

Applications

※ Portable audio

※ Mobile phones and personal digital assistants

※ Operation of various digital devices

SPECIFICATIONS

Size： 4.5x2.56mm

Travel: 0.2±0.1mm

Operation Force: 180gf；250gf

SPECIFICATIONS

Size： 3.5x4.7mm

Travel: 0.25±0.1mm

Operation Force: 180gf；250gf；320gf

SPECIFICATIONS

Size： 2X4mm

Travel: 0.15±0.1mm

Operation Force: 180gf；250gf

SPECIFICATIONS

Size： 2.4X4.6mm

Travel: 0.15±0.1mm

Operation Force: 90gf；140gf；180gf；250gf

SPECIFICATIONS

Size： 4.5X2.2mm

Travel: 0.15±0.2mm

Operation Force: 180gf；250gf

SPECIFICATIONS

Size： 3.0X4.5mm

Travel: 0.15±0.1mm

Operation Force: 160gf；250gf
