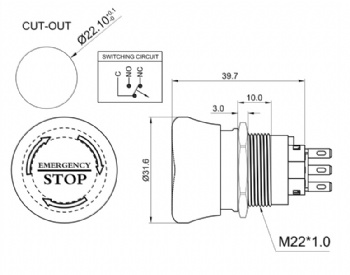

Panel Thickness: Ø19.20mm Ø22.20mm
Contact Rating: lth 5A/250VAC resistive load 3A/250VAC
Mechanical Life: 100,000 cycles
Electrical Life: 50,000 make-and-break cycles at full load
Torque: 5~14Nm
Travel: About 3.0mm
Operation Pressure: 1Pole 2.5±1N / 2Poles 3.5±1N
Contact Resistance: 50 mΩ max. @1A 12VDC (initial value)
Insulation Resistance: 1000MΩ min.at 500VDC
Dielectric Strength: 2,000 Vrms @sea level.
Operating Temperature: -20°C to 85°C
