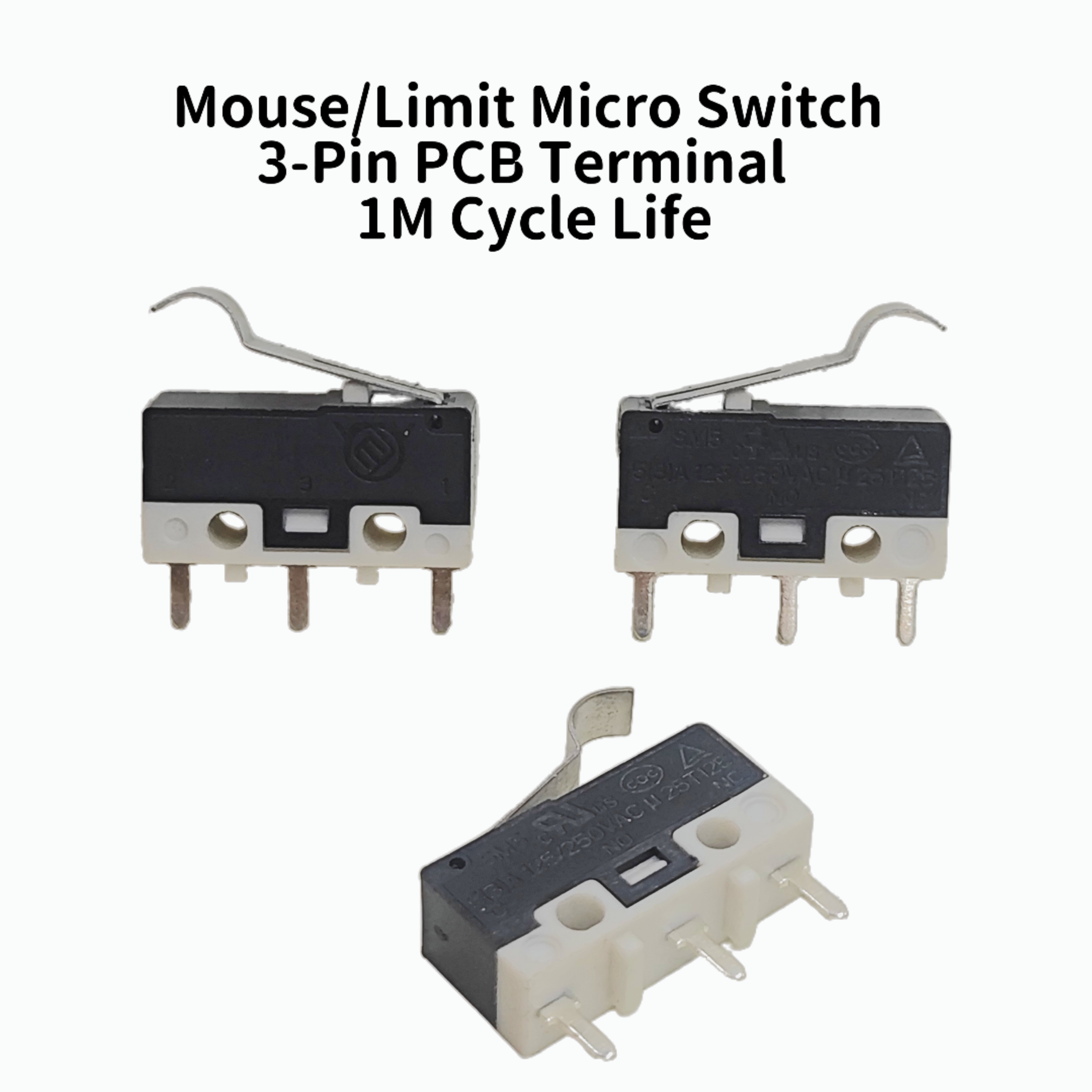

Createn 3-Pin NO/NC PCB Micro Switch for Mouse & Limit Control - Medium Size Bent Terminal, Silver Alloy Contact 2mm | 1M Cycles, RoHS, -25℃~+125℃

Mouse/Limit Micro Switch 3-Pin PCB Terminal | 1M Cycle Life, Silver Alloy 2mm, RoHS
Long life, excellent tactility RoHS compliant
Adopts an integrally formed terminal structure that prevents flux from climbing up
Contact point: Silver alloy 2mm
Contact resistance: 50 mΩ MAX
Allowable operating frequency: mechanical action 100 times/min, Electrical life 30 times/min
Insulation resistance: more than 100MΩ D500V
Mechanical life: 1,000,000 times
Electrical life: 10,000 times
Ambient temperature:-25℃ to +125℃ 60%RH or less(no ice condensation)
Ambient humidity:<85%RH at +40°C
Resistance to soldering heat:255+5℃ 5s
Weight: about 2g
