12mm Metal Tact Switches

12mm Metal Tact Switches

switches are designed to be internally waterproof, light-touch actuated, and have a crisp feel. Its short size is suitable for use in small spaces, and it can be single-color/two-color stepless with light function

Inquiry Now

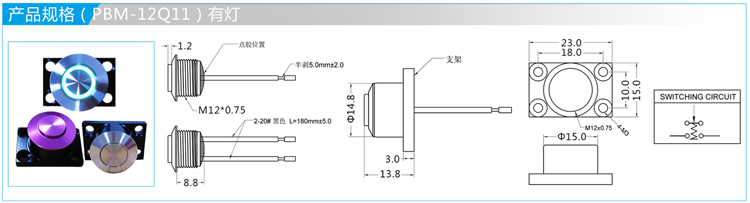

SPECIFICATIONS

Panel Thickness: Ø12.20mm

Function:Momentary

Contact Rating: 50mA @ 12VDC.
Mechanical Life: 200,000 cycles

Electrical Life: 50,000 cycles make-and-break cycles.

Torque: 1~3Nm

Travel: About 0.3mm

Operation Pressure: About 1.5N
Contact Resistance: 50 mΩ max.
Insulation Resistance: 100MΩ min.

Dielectric Strength: 500 Vrms @sea level.
Operating Temperature: -20°C to 85°C

Ingress Protection: IP67



MATERIALS

BUSHING : Stainless Steel / Nickel plated brass / Aluminum alloy

BASE : PBT, PC

ACTUATOR : PC ; Stainless Steel / Nickel plated brass / Aluminum alloy

INNER ASSEMBLY : POM / PA66.

SPRING : Spring steel.

SEALING : Sillicone.

O-Ring : Sillicone

TERMINAL : Brass,with silver or gold plated.

HEX NUT : Nickel plated brass



Led: 1.8V/3V/6V/12V/24V/36V/48V/110V/220V

ILLUMINATION BASE RATlNG:

Red, Yellow and Orange:20mA 1.8V;

Blue, Green and White:20mA 2.8V

Beads Color:R/U/G/Y/0/W

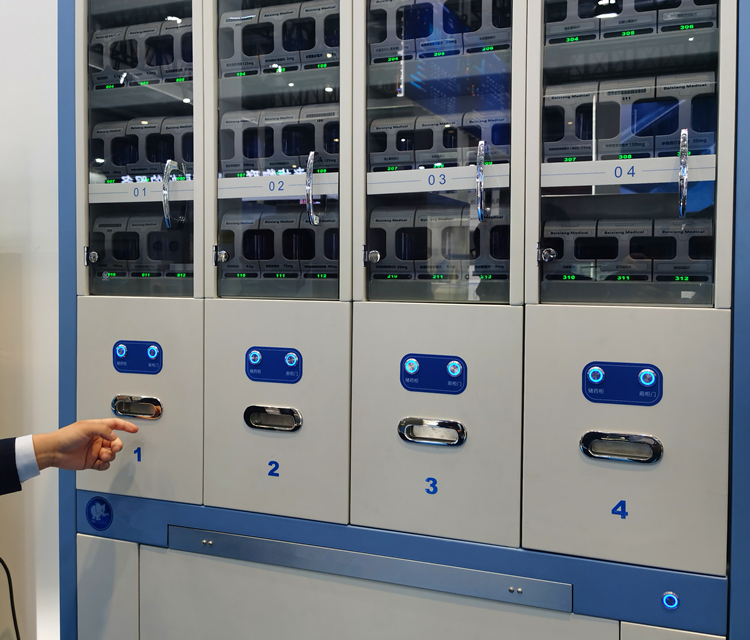

Application scenarios
