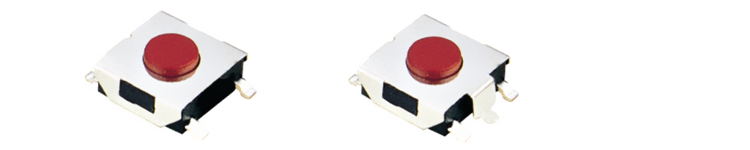

Tact Switch - 6.2x6.2 Middle travel long life rubber button tact switch
Tact Switches SPECIFICATIONS Feature： Vertical Push Contact Rating: 50mA @ 12VDC. Electrical Life: 50,000 cycles Contact Resistance: 100 mΩ max. Dielectric Strength: 250 Vrms @sea level.
Features ※ Improve mounting density of components on PC board. ※ Reflow solderable ※ Sharp “click” feel with a positive tacile feedback ※ Packaged with a 12mm wide embossed taping.
Applications ※ Portable audio ※ Mobile phones and personal digital assistants ※ Operation of various digital devices |
SPECIFICATIONS
Size： 6.2x6.2mm
Travel: 0.35±0.1mm
Operation Force: 180gf；250gf；320gf；400gf
SPECIFICATIONS
Size： 6.2x6.2mm
Travel: 0.5±0.3mm
Operation Force: 180gf；250gf；
SPECIFICATIONS
Size： 6.2X6.2mm
Travel: 0.25±0.1mm
Operation Force: 180gf；250gf；
SPECIFICATIONS
Size： 6.2X6.2mm
Travel: 0.25±0.1mm
Operation Force: 180gf；250gf
SPECIFICATIONS
Size： 6.2X6.2mm
Travel: 0.25±0.1mm
Operation Force: 70gf；90gf；180gf；250gf
SPECIFICATIONS
Size： 6.2X6.2mm
Travel: 0.25±0.1mm
Operation Force: 90gf；180gf；250gf
SPECIFICATIONS
Size： 6.2X6.2mm
Travel: 0.5±0.3mm
Operation Force: 180gf；250gf；320gf
SPECIFICATIONS
Size： 6.2X6.2mm
Travel: 0.25±0.1mm
Operation Force: 90gf；180gf；250gf；320gf
