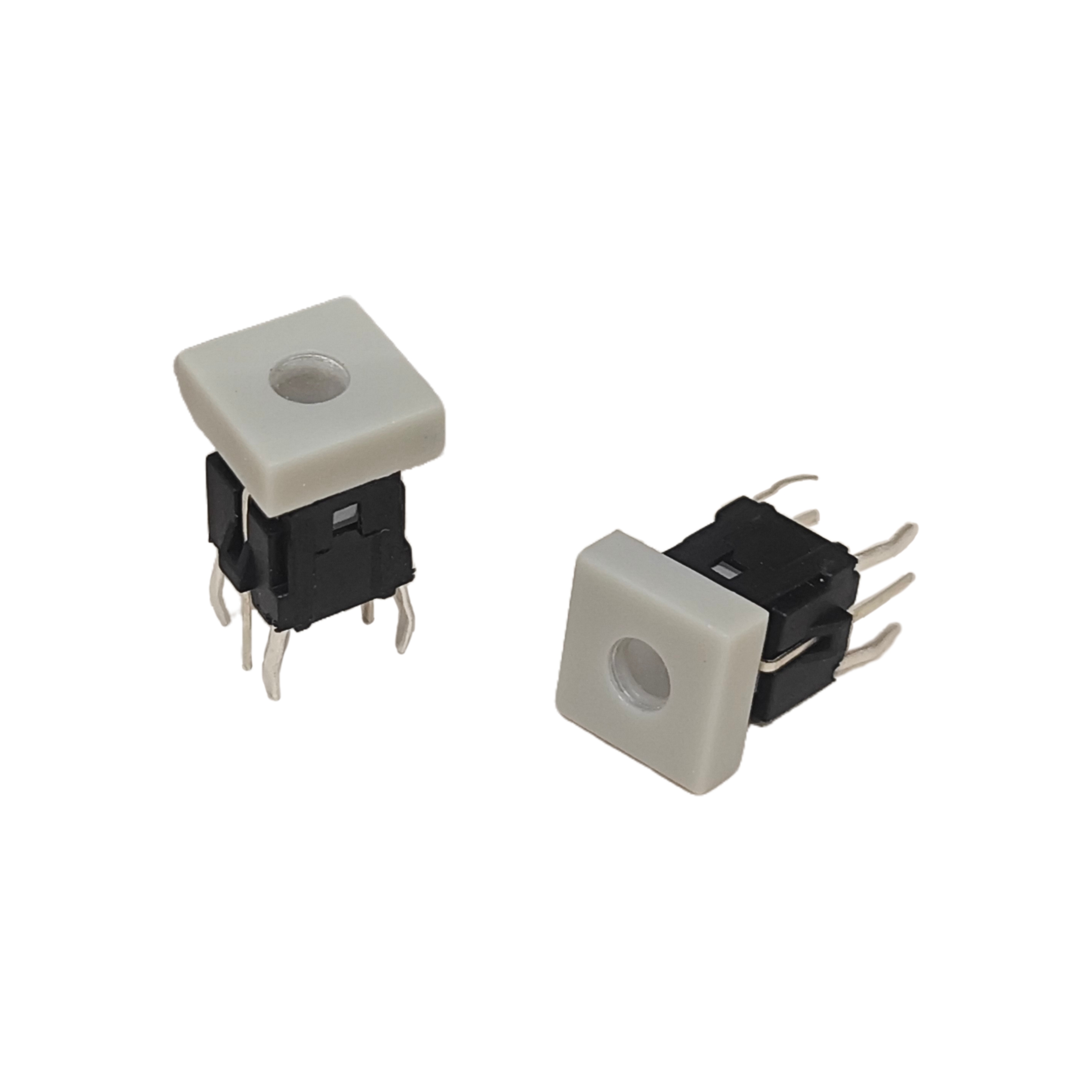

Createn 6x6x9mm Tactile Push Button Switch with LED, Vertical Through-Hole Mount, 6-Pin, Square Button, Micro Switch

Rating：50mA. 30V DC
Insulation resistance：100M2 min.250V DC
Dielectric strength：AC250V(50-60Hz)for 1 min.
Contact resistance：100m22 max.
Lifetime：100,000 Cycles Min
Operating force：J:160gf C:250gf
Travel：0.25 ±0.1mm
Operating temperature range：-25℃ to +85℃

Inquiry Now

Description

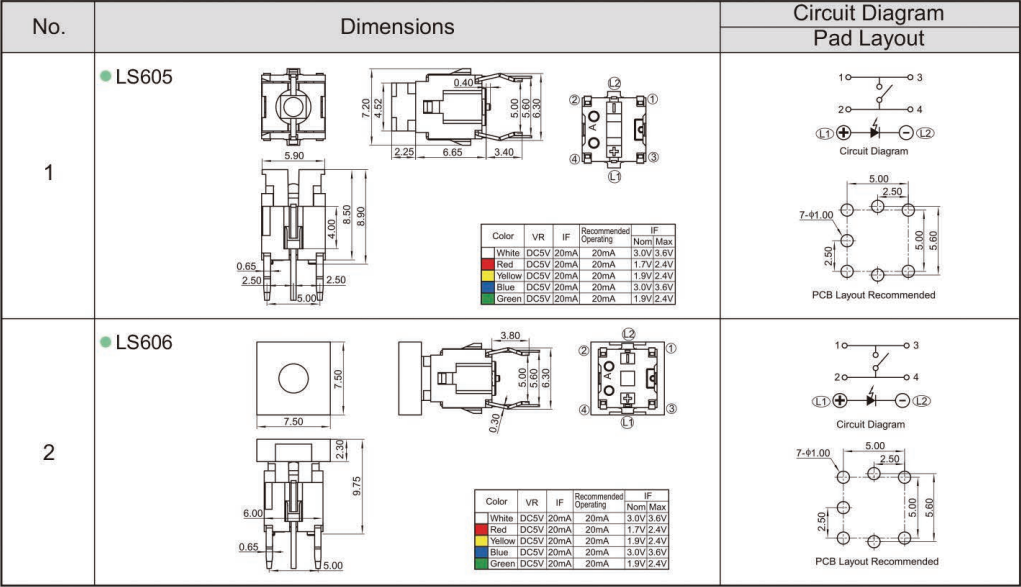

6x6x9mm Tactile Push Button Switch with LED, Vertical Through-Hole Mount, 6-Pin, Square Button, Micro Switch.png
